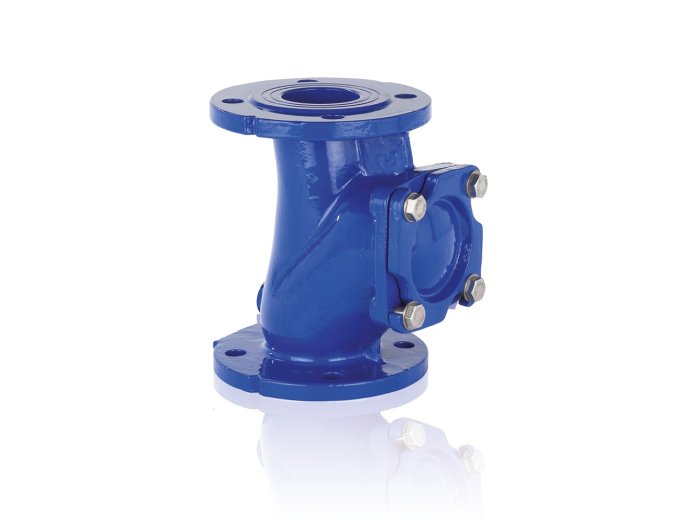

FLANGED CAST IRON BALL CHECK VALVE 4"
In-line ball check or non-return valve, made of cast iron (GG25). Closing ball in resin with NBR coating. NBR sealing gasket. Flanged connections according to UNI EN 1092-1 PN16. Surface treatment: epoxy painting (RAL 5017 - 200 micron). The 6VRFL-F check valve is generally used in drainage systems for sewage or liquids with suspended solids in civil and industrial installations where it is necessary to prevent the return of the fluid and operates at a nominal working pressure (PN) of 10 bar.
Inventory status:
+15 days
| Qty | Unit price |
|---|---|
| Piece | |
| 1 | €408.64 |
| Note: the prices shown are exclusive of VAT | |
Key Features
Brand
MONDEO
Material
Cast iron
Sealing
NBR
DN
65 - 150
PN
10
