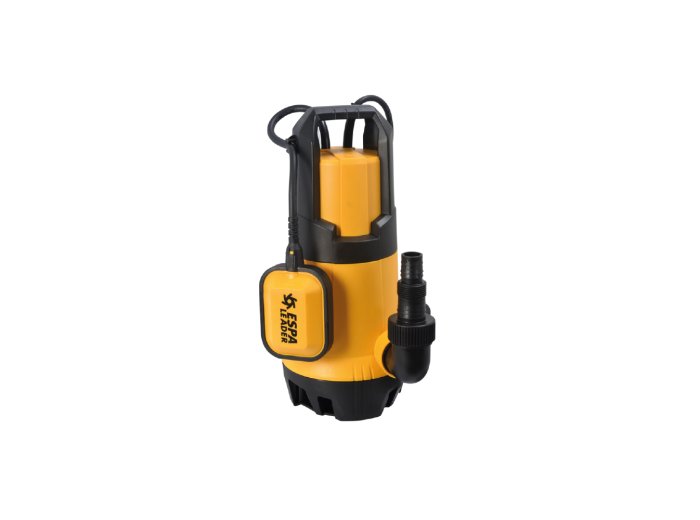

Portable submersible pump 800W for raw water, plastic pump body, internal condenser, IP 68 protection class. Equipped with 10 m power cable, shucko plug and automatic float switch. Generally the KONA V electric pump is used for lifting and emptying dirty water and in small purification plants with suspended solids, with maximum passage cross-sections: 35 mm, thanks to the Vortex impeller. Maximum immersion depth 7 metres.
Key Features
Brand
ESPALEADER
Model
KONA V
Power supply type
single-phase 230V 50Hz
Power P1 W
600W
Impeller type
Vortex (backward)
Not the right product?
Related productsBUY MODEL VARIANTS
In this section you will find all the variants of this model in the catalog: you can use the filters below to make your search more specific. When you have identified the variant you need, specify the quantity and use the button to add it to your Shopping List.
Loading...
Cl. B
4,00 °C
40,00 °C
Sewage water, Dirty Water
Hose Nipple
5,00 °C
40,00 °C
2800
IPX8
1
7,00 m
Continuous
Impeller
10,00 m
Ambient liquid
Technopolymer
Technopolymer
+/-5%
Equipment: power cable with shucko plug, float for automatic start and stop.

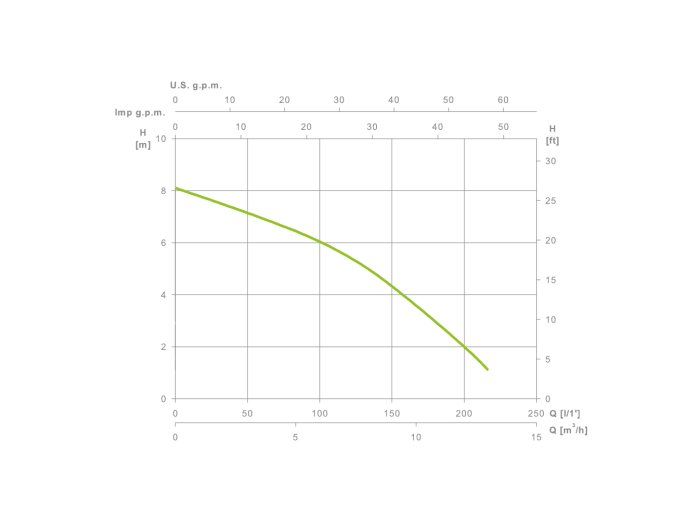

Performance chart at 2900 rpm

Head in m.w.c.
Motor power P2 | flow l/min | 0 | 50 | 100 | 150 | 200 | 220 | ||
---|---|---|---|---|---|---|---|---|---|
SKU | Name | HP/kW | m³/h | 0 | 3 | 6 | 9 | 12 | 13,2 |
210137 | DRAIN. PUMP KONA V 750P M 230V AUT | 0,6 / 0,44 | 8 | 7 | 6 | 4,3 | 2 | 1 |
