The FOX H05 horizontal float switch allows the automation of pumps, but also solenoid valves, alarm activation and motorised gate valves when a pre-set level of the liquid contained in tanks or cisterns is reached. Inside the device is a microswitch which, depending on the liquid level, opens or closes a supply contact.
The FOX H05 float switch is available with an electrical cable length of 3, 5, 10 and 20 metres and is suitable for working with clean water without suspended solids.
Cable H05 RN-F 3x1 diam. 7,5mm
Function Emptying and refilling
Certification TUV Rheinland
Not the right product?Alternate Products Related products
BUY MODEL VARIANTSIn this section you will find all the variants of this model in the catalog: you can use the filters below to make your search more specific. When you have identified the variant you need, specify the quantity and use the button to add it to your Shopping List.
Pressurization, Water treatment, Wells
Power supply: max. 10(8)A 250V for pumps up to 1.5 Hp
Class: I - II
Dry contacts: min 0.1A - min 12/24V

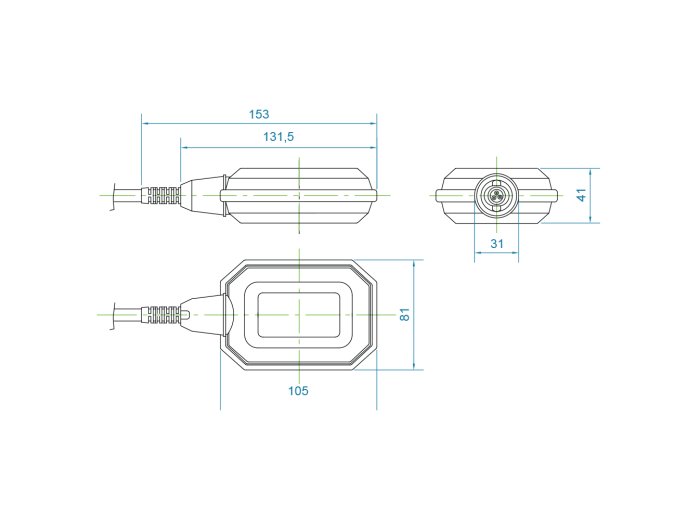

* Note: dimensions are expressed in millimeters (mm.), unless otherwise specified.
|Manuale istruzioni ITA||1.91 MB||Download|
|Certificato TUV ITA||78.13 KB||Download|
