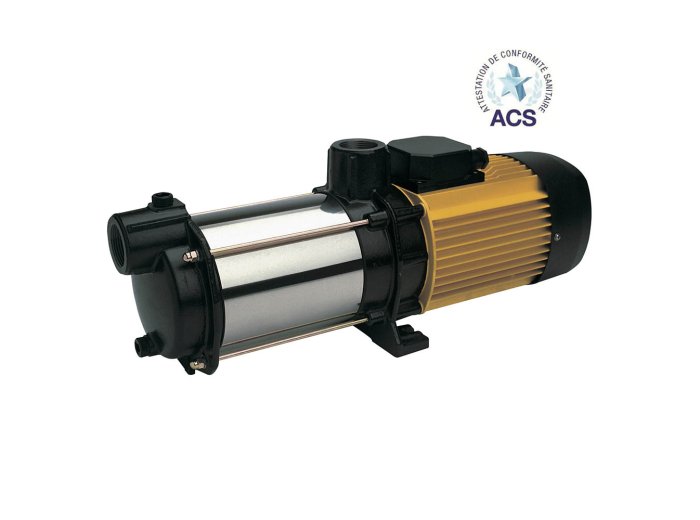

PRISMA 35N

Noiseless multi-cell horizontal surface pump, from 1 HP to 3 HP, pump body and impellers in stainless steel (AISI 304), suction and delivery in cast iron with cataphoresis coating, diffusion in Noryl loaded with glass fibre, mechanical seal in graphite and steatite. Generally, the Prisma 35 electric pump is used for water distribution, domestic pressurisation, condominium pressurisation units, and for medium and large-scale irrigation.

Select variant

Key Features

Brand ESPA

Model PRISMA 35N

Power supply type single-phase 230V , three-phase 400V 50Hz

Power P2 Hp 1Hp , 1,5HP , 2Hp , 3Hp

Suction diameter threaded 1" 1/4

Outlet diameter threaded 1" 1/4

Not the right product?

Alternate Products Related products

BUY MODEL VARIANTS

In this section you will find all the variants of this model in the catalog: you can use the filters below to make your search more specific. When you have identified the variant you need, specify the quantity and use the button to add it to your Shopping List.

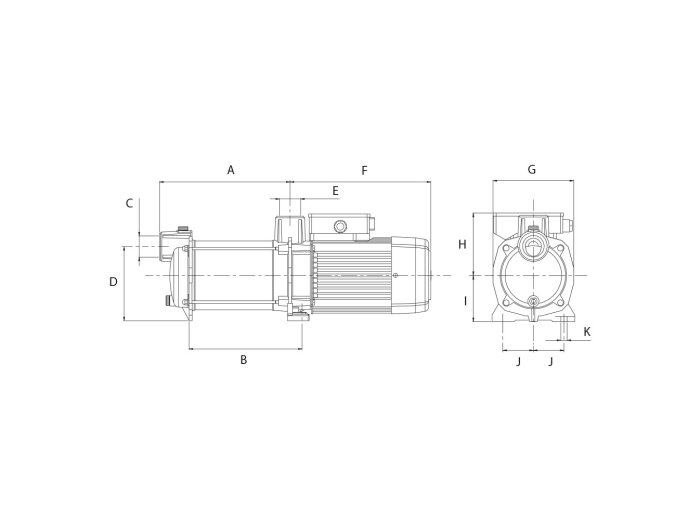

		A	B	C	D	E	F	G	H	I	J	K	Weight in Kg
129343	SURF. EL. PUMP PRISMA353MN 1HP 1-230V	221	187,3	1" 1/4	147	1" 1/4	281,5	158	125,3	90	60	12	18,5
129344	SURF. EL. PUMP PRISMA354MN 1,5HP 1-230V	246,6	211,8	1" 1/4	147	1" 1/4	281,5	158	125,3	90	60	12	20,5
129345	SURF. EL. PUMP PRISMA355MN 2HP 1-230V	271	236,3	1" 1/4	147	1" 1/4	281,5	158	125,3	90	60	12	23,5
129346	SURF. EL. PUMP OR. PRISMA353N 1HP 3-400V	221	187,3	1" 1/4	147	1" 1/4	281,5	158	125,3	90	60	12	18,2
129347	SURF. EL. PUMP PRISMA354N 3-400V 50HZ	246,6	211,8	1" 1/4	147	1" 1/4	281,5	158	125,3	90	60	12	18,6
129348	SURF. EL. PUMP PRISMA355N 2HP 3-400V	271	236,3	1" 1/4	147	1" 1/4	281,5	158	125,3	90	60	12	20,6
129349	SURF. EL. PUMP PRISMA356N 3HP 3-400V	295,6	260,8	1" 1/4	147	1" 1/4	281,5	158	125,3	90	60	12	23,7

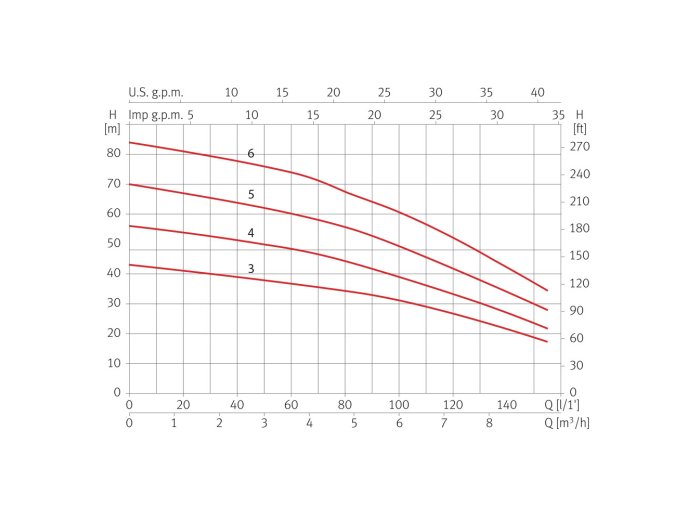

		Motor power P2	20	40	60	80	100	120	140	150
129343	SURF. EL. PUMP PRISMA353MN 1HP 1-230V	1 / 0,75	41	39	36	34	31	27	22	18
129344	SURF. EL. PUMP PRISMA354MN 1,5HP 1-230V	1,5 / 1,1	54	51	48	44	39	33	27	23
129345	SURF. EL. PUMP PRISMA355MN 2HP 1-230V	2 / 1,5	68	64	60	55	49	41	34	30
129346	SURF. EL. PUMP OR. PRISMA353N 1HP 3-400V	1 / 0,75	41	39	36	34	31	27	22	18
129347	SURF. EL. PUMP PRISMA354N 3-400V 50HZ	1,5 / 1,1	54	51	48	44	39	33	27	23
129348	SURF. EL. PUMP PRISMA355N 2HP 3-400V	2 / 1,5	68	64	60	55	49	41	34	30
129349	SURF. EL. PUMP PRISMA356N 3HP 3-400V	3 / 2,2	81	78	74	67	60	52	42	37
