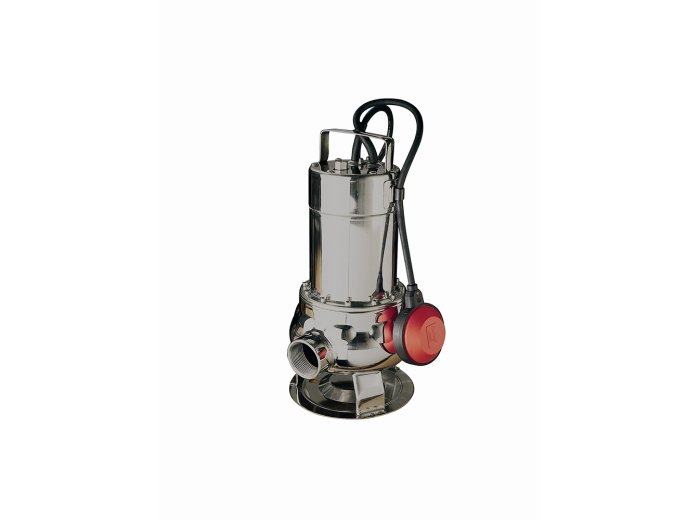

Submersible pump for drainage and sewage, from 0.8HP to 2HP, pump body, impeller, foot, motor casing and nuts and bolts in stainless steel (stainless steel AISI 304), motor shaft on pump side in stainless steel (stainless steel AISI 316), mechanical seal on pump side in silicon carbide and alumina and motor side NBR ring, gaskets in NBR, for single-phase version internal condenser, protection degree IP 68. Equipped with 10-metre power cable, shucko plug and automatic float switch for MA versions.
Generally the ARX electric pump is used for lifting and emptying cesspools, settling pits, sewage collection pits and dirty, filthy water with suspended solids, with passage sections: 40 mm for the 80 models and 50 mm for the 100, 150 and 200 models, thanks to the Vortex impeller. Maximum immersion depth 9 metres.

Key Features

Brand ESPA
Model1 ARX
Power supply type single-phase 230V , three-phase 400V 50Hz
Power P2 Hp 0.8Hp , 1Hp , 1,5Hp , 2 Hp
Outlet diameter threaded 1"1/2 (0.8Hp) , 2"
Impeller type Vortex (backward)


In this section you will find all the variants of this model in the catalog: you can use the filters below to make your search more specific. When you have identified the variant you need, specify the quantity and use the button to add it to your Shopping List.
