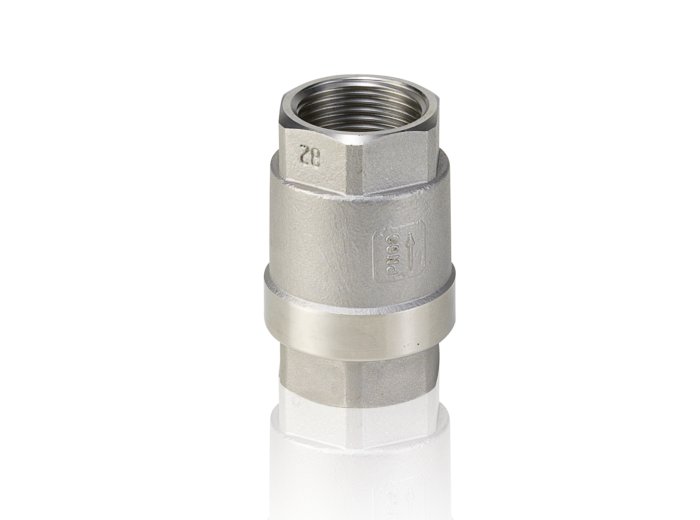

CROMAX AP PN63 CHECK VALVE 316 2"
In-line high-pressure check or non-return valve made of stainless steel (stainless steel Aisi 316). Spring loaded with closing disc (both in stainless steel Aisi 316). Metal-to-metal seat. Female gas connections threaded according to ISO 7-1 (EN 10226-1). Surface treatment: shot-blasting on valve body and disc.
The CROMAX/AP check valve is generally used in civil and industrial hydraulic systems in the outlet position for high pressure applications and operates at a nominal working pressure (PN) of 63 bar.
Inventory status:
In Stock
| Piece | ||
| Q.ty | Unit price | |
|---|---|---|
| 1 | €130.01 | |
| Note: the prices shown are exclusive of VAT | ||
Key Features
Brand
MONDEO
Material
Stainless steel Aisi 316
Sealing
Metal to metal
DN
8 - 100
PN
63
