90032

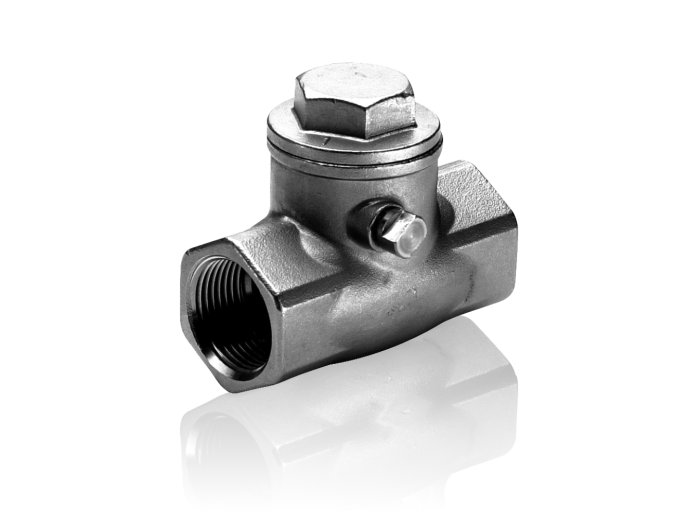

In-line check or non-return valve made of stainless steel (AISI 316). Swing type with PTFE seal. Threaded female gas connections according to ISO 7-1 (EN 10226-1). Surface treatment: shot-blasting on valve body and bonnet. The 90032 check valve is generally used in civil and industrial hydraulic systems in the outlet position where it is necessary to avoid fluid return and operates at a nominal working pressure (PN) of 16 bar.

Key Features

Brand GENEBRE
Material Stainless steel Aisi 316
Sealing Metal to metal
DN 15 - 50
PN 16


BUY MODEL VARIANTS

In this section you will find all the variants of this model in the catalog: you can use the filters below to make your search more specific. When you have identified the variant you need, specify the quantity and use the button to add it to your Shopping List.
Loading...
