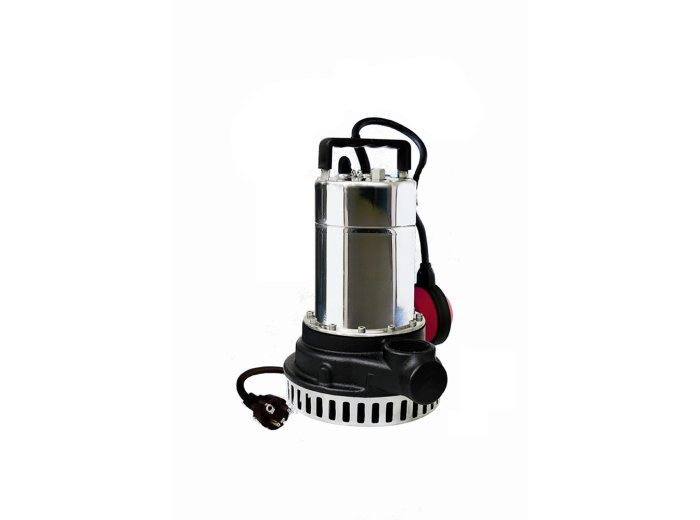

Submersible pump for clear and dirty water drainage 1HP and 1.5HP, cast iron pump body (G 25), motor casing and hardware in stainless steel (AISI 304).
Impeller in AISI 304 stainless steel for 1Hp model and in cast iron for 1.5Hp model.
NBR seals.
For single-phase version internal condenser, IP 68 degree of protection. Equipped with power cable 10 metres long, shucko plug and automatic float switch for MA versions. Generally, the DMR electric pump is used for lifting waste water from septic tanks and sewage treatment plants, with solids in suspension, with a passage cross-section of 8 mm.
Maximum immersion depth 5 metres.
Key Features
BUY MODEL VARIANTS
In this section you will find all the variants of this model in the catalog: you can use the filters below to make your search more specific. When you have identified the variant you need, specify the quantity and use the button to add it to your Shopping List.Materials: Motor housing and bolts in Aisi 304.
Motor flange, cast iron pump casing (G25).
Impeller in AISI 304 stainless steel for 1Hp model and in cast iron for 1.5Hp model.
Motor: non-polluting dielectric coolant bath.
Single-phase versions with thermal protection and built-in condenser.
Passage limits: 8mm
Maximum immersion depth: 5 m.
Equipment: 10 m power cable.
Built-in capacitor for single-phase version
MA: with level switch.

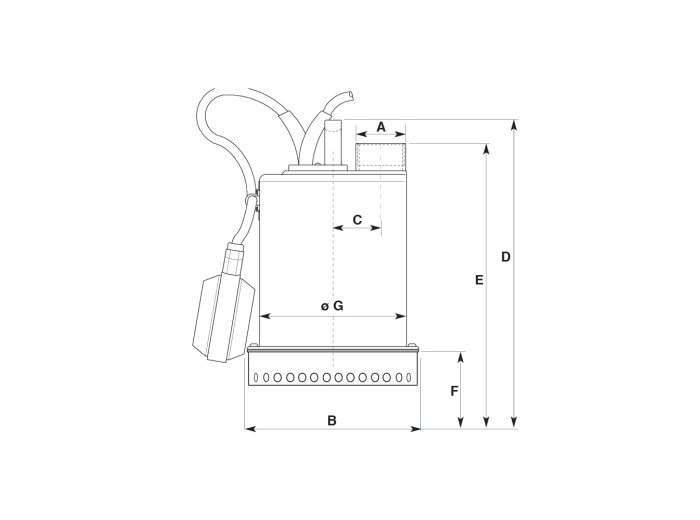

A | B | C | D | Weight in Kg | ||
---|---|---|---|---|---|---|
A00204 | DRAIN. EL.PUMP DMR100MA 1-230V | 1" 1/2 | 190 | 213,5 | 300 | 13,5 |
A00207 | DRAIN. EL.PUMP DMR140MA 1-230V | 1" 1/2 | 190 | 213,5 | 344 | 18,2 |
A00205 | DRAIN. EL.PUMP DMR140 3-400V | 1" 1/2 | 190 | 213,5 | 344 | 18,2 |

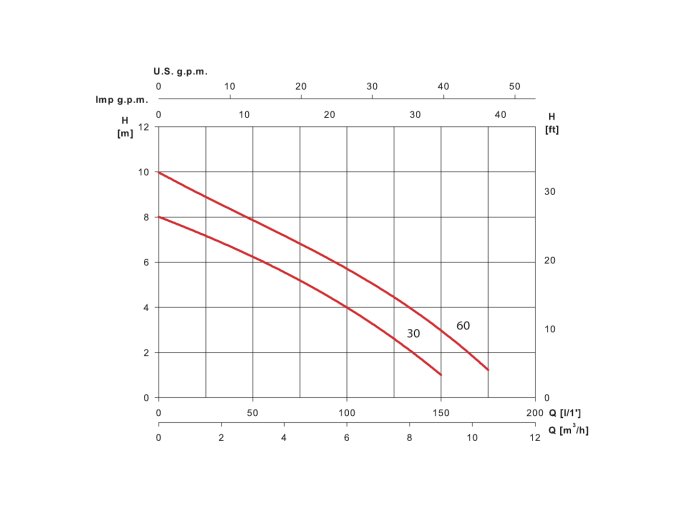

Head in m.w.c.
Motor power P2 | flow l/min | 0 | 25 | 50 | 100 | 150 | 200 | 250 | 300 | 400 | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|
SKU | Name | HP/kW | m³/h | 0 | 1,5 | 3 | 6 | 9 | 12 | 15 | 18 | 24 |
A00204 | DRAIN. EL.PUMP DMR100MA 1-230V | 1 / 0,75 | 15 | 14 | 12,8 | 11,2 | 9,2 | 7,4 | 5,2 | 2,6 | ||
A00207 | DRAIN. EL.PUMP DMR140MA 1-230V | 1,5 / 1,1 | 19,5 | 19 | 18,5 | 17,5 | 16 | 14 | 11,8 | 9,2 | 4 | |
A00205 | DRAIN. EL.PUMP DMR140 3-400V | 1,5 / 1,1 | 19,5 | 19 | 18,5 | 17,5 | 16 | 14 | 11,8 | 9,2 | 4 |
