Stainless steel threaded hydraulic fittings (stainless steel Aisi 304 and Aisi 316) are suitable for water, oil, steam and compressed air transport systems. They are suitable for domestic and industrial installations, with the possibility of customisation thanks to machining that allows the product to be modified according to customer requirements.

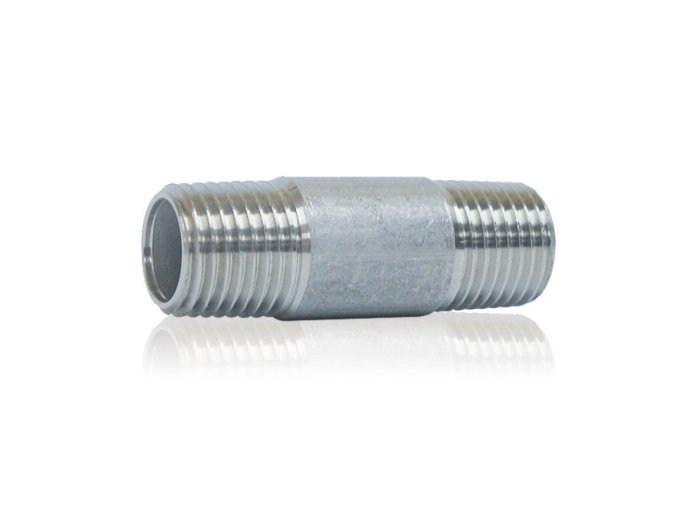

The EXTENSION SCREW range of fittings is made of Aisi 316 stainless steel and is available from 1/4" up to 4".
Material Aisi 316
BUY MODEL VARIANTSIn this section you will find all the variants of this model in the catalog: you can use the filters below to make your search more specific. When you have identified the variant you need, specify the quantity and use the button to add it to your Shopping List.
Water treatment, Compressed air
Stainless Steel Aisi 316
Connections: threaded according to ISO 10226-1
Working temperature: -20°C to +180°C
Maximum working pressure: 20 bar up to 40°C
Tolerances: ISO 4144
* Note: dimensions are expressed in millimeters (mm.), unless otherwise specified.
|902901||EXTENSION SCREW 1/4" AISI 316||13,7||2||40|
|902903||EXTENSION SCREW 3/8" AISI 316||17,1||2||40|
|902905||EXTENSION SCREW 1/2" AISI 316||21,3||2,5||60|
|902907||EXTENSION SCREW 3/4" AISI 316||26,7||2,5||60|
|902909/60||EXTENSION SCREW 1" AISI 316 L=60 mm||33,7||3||60|
|902911||EXTENSION SCREW 1"1/4 AISI 316||42,2||3||80|
|902913||EXTENSION SCREW 1"1/2 AISI 316||48,3||3||80|
|902915||EXTENSION SCREW 2" AISI 316||60,3||3||100|
|902917||EXTENSION SCREW 2"1/2 AISI 316||76,1||4||100|
|902919||EXTENSION SCREW 3" AISI 316||88,9||4||120|
|902921||EXTENSION SCREW 4" AISI 316||114,3||4||150|
