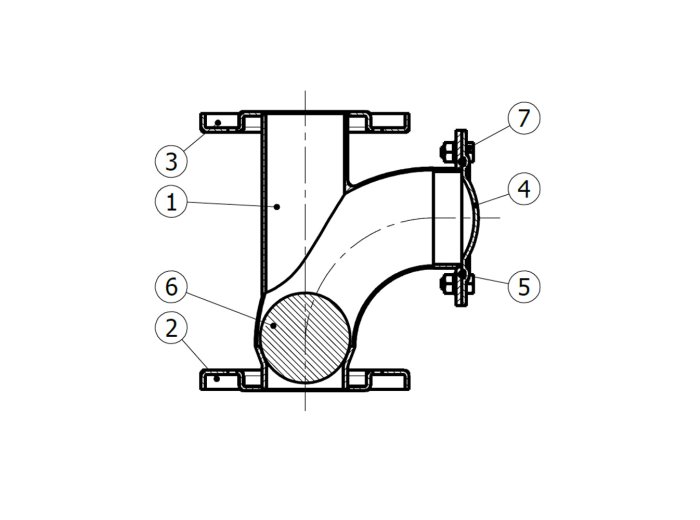

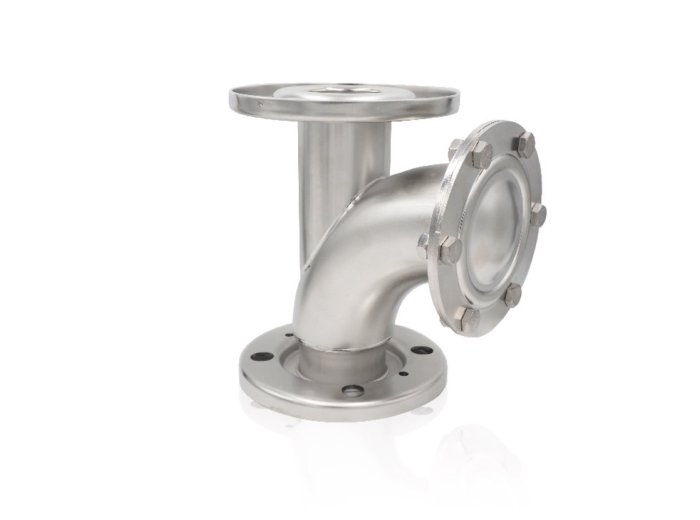

In-line check or non-return valve made of stainless steel (stainless steel AISI 316). NBR-coated aluminium ball shut-off. Stainless steel (AISI 316 stainless steel) threaded cap with NBR seal. Pressed stainless steel (AISI 316 stainless steel) flanged connections with UNI EN 1092-1 drilling. Surface treatment: degreasing, pickling and electropolishing. The GLOVALVE/XL non-return valve is generally used in civil and industrial hydraulic systems in the outlet position where it is necessary to prevent the return of sewage, dense fluids or loads of suspended elements and operates at a nominal working pressure (PN) of 10 bar.

Key Features

Material Aisi 316
Seal NBR
DN 65 - 100
PN 10
Not the right product?
Alternate Products


In this section you will find all the variants of this model in the catalog: you can use the filters below to make your search more specific. When you have identified the variant you need, specify the quantity and use the button to add it to your Shopping List.
