H2448

WWD23 - Altri prodotti

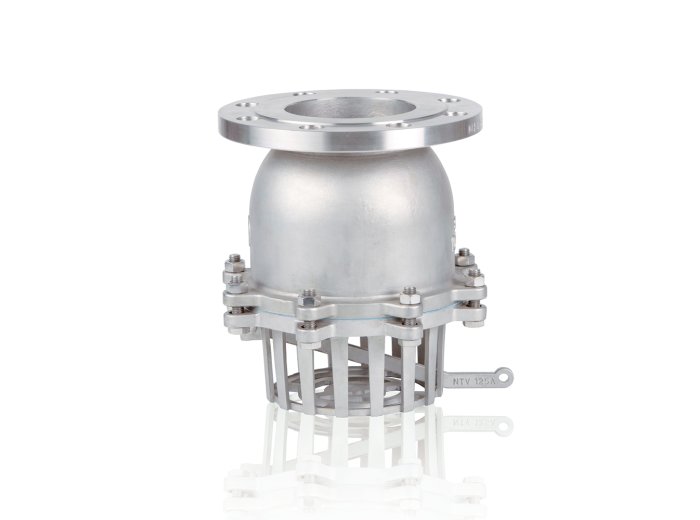

Check or non-return valve in bottom line, made of stainless steel (stainless steel AISI 316). Disc shutter with FPM seal and manual emptying system. Pressed stainless steel flanged connection according to DIN 2501 on delivery side and stainless steel filter (stainless steel AISI 316) on suction side. Surface treatment: shot-blasting on valve body, disc, filter and lever. The H2448 check valve is generally used in civil and industrial hydraulic systems in the inlet position where it is necessary to filter the fluid and operates at a nominal working pressure (PN) of 16 bar.

Key Features

Brand GENEBRE
Material Aisi 316
Seal FPM
DN 25 - 200
PN 16


BUY MODEL VARIANTS

In this section you will find all the variants of this model in the catalog: you can use the filters below to make your search more specific. When you have identified the variant you need, specify the quantity and use the button to add it to your Shopping List.
Loading...
