The float valve, made of stainless steel (Aisi 304 and Aisi 316), is mainly used for filling cisterns and large tanks as a closing system to regulate the level of water or more generally of the contained liquid.
The float valve installed at the supply point, consists of an opening and closing mechanism, H2856, and a float, H2852 of spherical shape, placed inside the tank. The float rises according to the liquid level and, upon reaching a certain level, sets off the closing mechanism, blocking the inflow of liquid into the tank, preventing the risk of overfilling.
Valve and float are available in Aisi 304 stainless steel in sizes from 3/8" up to 1" 1/4; in Aisi 316 stainless steel in sizes from 3/8" up to 2" 1/2. Nominal working pressure is PN 10 for all models.
Not the right product?Related products
BUY MODEL VARIANTSIn this section you will find all the variants of this model in the catalog: you can use the filters below to make your search more specific. When you have identified the variant you need, specify the quantity and use the button to add it to your Shopping List.
Connection: male gas threaded according to UNI ISO 228/1
Instant locking system
Nominal working pressure: 10 bar

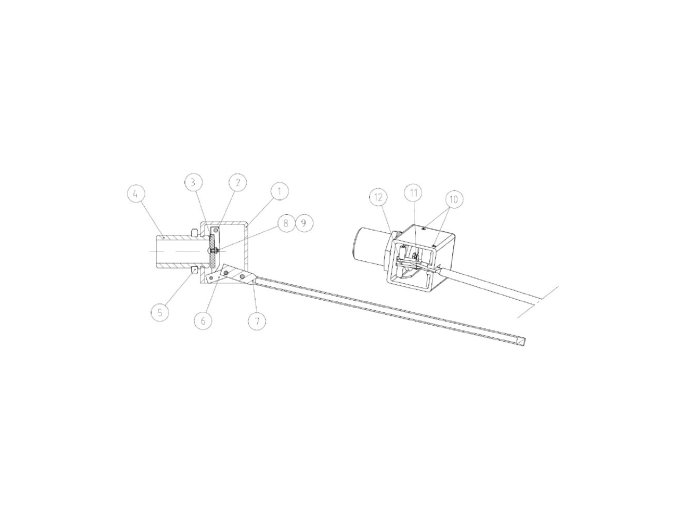

|1||Body||Stainless Steel 1.4408|
|2||Disc||Stainless Steel 1.4401|
|4||Nipple||Stainless Steel 1.4401|
|5||Nut||Stainless Steel 1.4401|
|6||Arm||Stainless Steel 1.4401|
|7||Lever||Stainless Steel 1.4401|
|8||Screw||Stainless Steel 1.4401|
|9||Nut||Stainless Steel 1.4401|
|10||Bolt||Stainless Steel 1.4401|
|11||Pin||Stainless Steel 1.4401|
|12||Pin||Stainless Steel 1.4401|

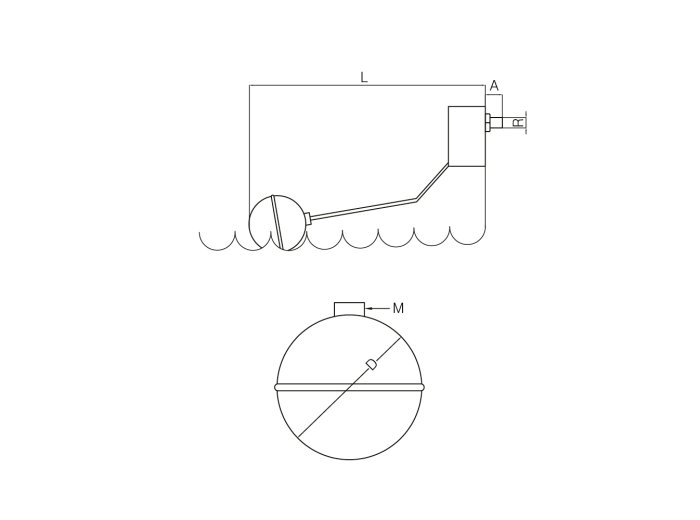

|A||L||Weight in Kg.|
|H285603||FLOATING VALVE BODY AISI 316 3/8"||32||300||0,23|
|H285604||FLOATING VALVE BODY AISI 316 1/2"||35||410||0,3|
|H285605||FLOATING VALVE BODY AISI 316 3/4"||42||500||0,55|
|H285606||FLOATING VALVE BODY AISI 316 1"||45||580||0,6|
|H285607||FLOATING VALVE BODY AISI 316 1"1/4||52||580||0,8|
|H285608||FLOATING VALVE BODY AISI 316 1"1/2||60||620||2,6|
|H285609||FLOATING VALVE BODY AISI 316 2"||70||720||2,9|
|H285610||FLOATING VALVE BODY AISI 316 2"1/2||80||720||3,55|
