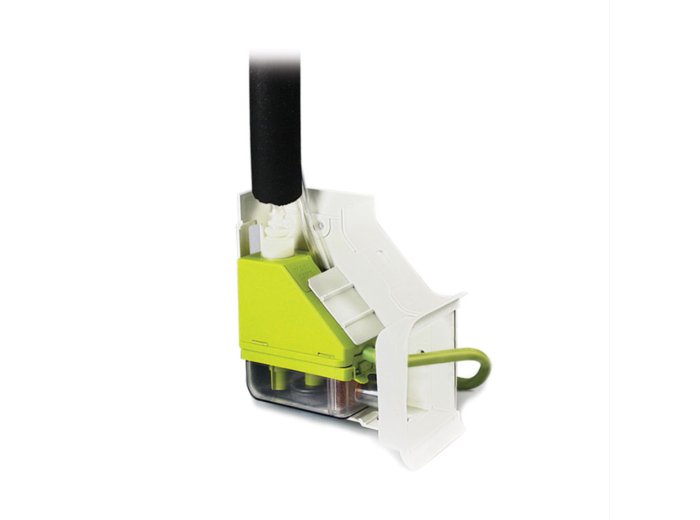

MAXI LIME
Condensate removal pump specially designed for large units and humid environments. The MAXI LIME pump has an elbow connection and is capable of delivering maximum power when it is required. Easy access for maintenance activity, the MAXI LIME condensate drain pump work till 46 kW and it's ideal for large commercial air conditioning units and in large rooms.
It is also available in a "pump only" configuration.
Package includes:
- Maxi Lime pump (inc. 750mm discharge tube with 6mm ID connector and 1.5m hard wired power cable)
- 500mm Lime green inlet hose 14mm ID
- 40mm Vinyl breather tube 6mm ID
- Anti siphon device
- Elbow front and back
- 800mm conduit front and back
- Gasket (BBJ and Inoac/Inaba systems only)
- Ceiling plate
- Drain connector kit
- Fixing kit
- Install manual
Key Features
Brand
ASPEN

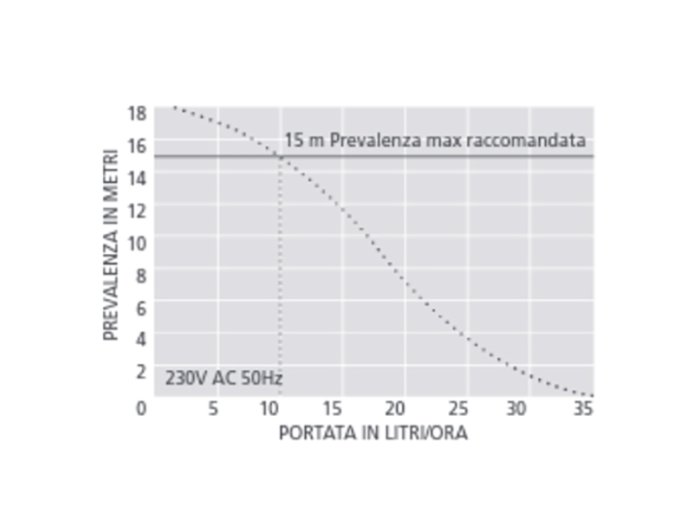

Max. Flow
35 l/h @ 0m head
Db (A) @ 1 mt.
35 dB (A)
Max. Water Temp.
40°C / 104°F
Discharge tube
6 mm.
Power supply
230V AC - 0,1A - 16W - 50/60Hz
