The suction filters function is to prevent that the impurities inside the liquids, might enter in a hydraulic system, when it is drawn from tanks, cisterns or basins and open water courses. This protects pumps, sensors and measuring instruments from damage.

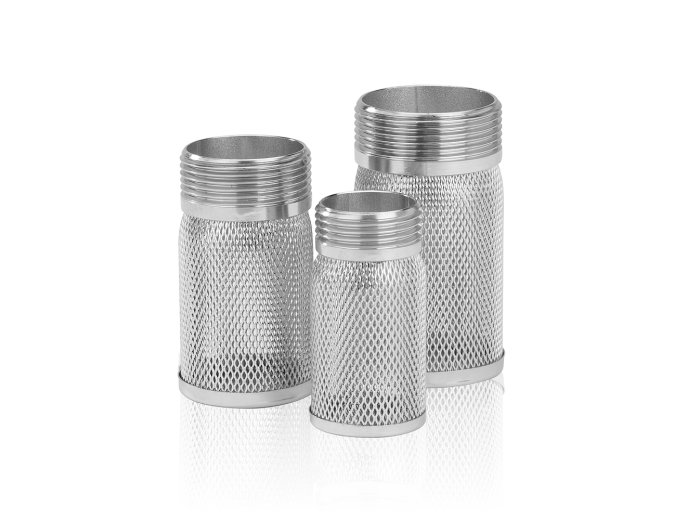

IDRJA-SMALL filters are made entirely of stainless steel (stainless steel Aisi 304 or Aisi 316) and have a male threaded connection.
The Aisi 316 variants are electropolished for improved corrosion resistance.
The working temperature is between 0°C and +200°C.
Not the right product?
Related productsBUY MODEL VARIANTS
In this section you will find all the variants of this model in the catalog: you can use the filters below to make your search more specific. When you have identified the variant you need, specify the quantity and use the button to add it to your Shopping List.
Loading...
0,00 °C
200,00 °C
Threaded
Connection: male threaded according to UNI ISO 228/1
Grade of filtration
1000 micron - U.S. mesh: 18 (from 3/8" to 2")
1800 micron - U.S. mesh: 10 (from 2" 1/2 to 4")
Stainless Steel Aisi 304 | Stainless Steel Aisi 316 | ||
---|---|---|---|
Net-filter | Stainless steel Aisi 304 | Stainless steel Aisi 316 | |
Net cap | Stainless steel Aisi 304 | Stainless steel Aisi 316 | |
Male coupling | Stainless steel Aisi 304 | Stainless steel Aisi 316 |

* Note:
dimensions are expressed in millimeters (mm.), unless otherwise specified.
H | A | ØD | Ød | Weight in gr. | ||
---|---|---|---|---|---|---|
900920 | CHECK VALVE SUCTION SCREEN 3/8" AISI 304 | 55 | 15 | 22 | 1 | 12 |
900931 | SCREEN FOR CHECK VALVES 3/8" AISI 316 | 55 | 15 | 19 | 1 | 12 |
900921 | SCREEN FOR CHECK VALVES 1/2" AISI 304 | 55 | 15 | 22 | 1 | |
900910 | SCREEN FOR CHECK VALVES 1/2" AISI 316 | 55 | 15 | 22 | 1 | 15 |
900922 | SCREEN FOR CHECK VALVES 3/4" AISI 304 | 62 | 15 | 28 | 1 | 25 |
900911 | SCREEN FOR CHECK VALVES 3/4" AISI 316 | 62 | 15 | 28 | 1 | 25 |
900923 | SCREEN FOR CHECK VALVES 1" AISI 304 | 71 | 15 | 36 | 1 | 34 |
900912 | SCREEN FOR CHECK VALVES 1" AISI 316 | 71 | 15 | 36 | 1 | 34 |
900924 | SCREEN FOR CHECK VALVES 1"1/4 AISI 304 | 80 | 20 | 43 | 1 | 52 |
900913 | SCREEN FOR CHECK VALVES 1"1/4 AISI 316 | 80 | 20 | 43 | 1 | 52 |
900925 | SCREEN FOR CHECK VALVES 1"1/2 AISI 304 | 90 | 20 | 49 | 1 | 62 |
900914 | SCREEN FOR CHECK VALVES 1"1/2 AISI 316 | |||||
900926 | SCREEN FOR CHECK VALVES 2" AISI 304 | 101 | 20 | 60 | 1 | 86 |
900915 | SCREEN FOR CHECK VALVES 2" AISI 316 | 101 | 20 | 60 | 1 | 86 |
900927 | SCREEN FOR CHECK VALVES 2"1/2 AISI 304 | 111 | 25 | 79 | 1,8 | 135 |
900916 | SCREEN FOR CHECK VALVES 2"1/2 AISI 316 | 111 | 25 | 79 | 1,8 | 135 |
900928 | SCREEN FOR CHECK VALVES 3" AISI 304 | 125 | 25 | 92 | 1,8 | 168 |
900917 | SCREEN FOR CHECK VALVES 3" AISI 316 | 125 | 25 | 92 | 1,8 | 168 |
900929 | SCREEN FOR CHECK VALVES 4" AISI 304 | 144 | 25 | 115 | 1,8 | 253 |
900918 | SCREEN FOR CHECK VALVES 4" AISI 316 | 144 | 25 | 115 | 1,8 | 253 |
