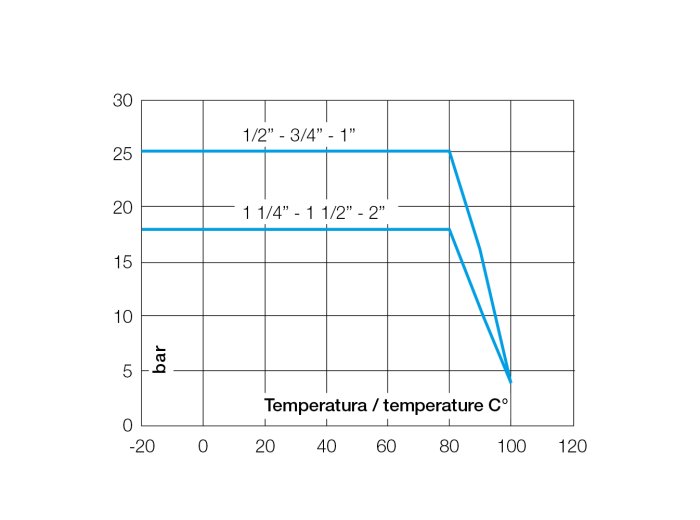

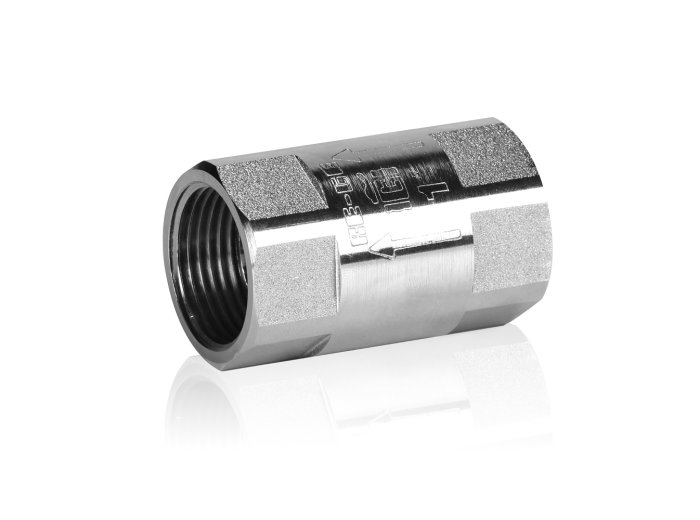

One-piece check or non-return valve in forged chrome-plated brass conforming to UNI-EN 12165. Stainless steel spring closure (AISI 304 stainless steel) and brass disc shutter with NBR seal. Female gas threaded connections according to UNI ISO 228/1. The RE-GE check valve is generally used in civil and industrial hydraulic systems and pneumatic installations in the outlet position where it is necessary to prevent the return of fluid, gas or air and operates at a nominal working pressure (PN) of 25 bar (from 1/2" to 1") or 18 bar (from 1" 1/4 to 2").
BUY MODEL VARIANTSIn this section you will find all the variants of this model in the catalog: you can use the filters below to make your search more specific. When you have identified the variant you need, specify the quantity and use the button to add it to your Shopping List.

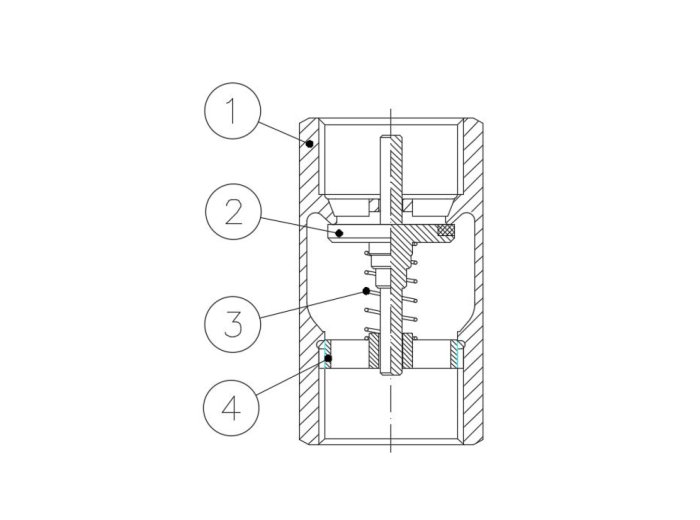

|1||Body||Hot-forged brass according to UNI-EN 12165|
|2||Flow control disc||Brass + NBR|
|3||Spring||Stainless steel Aisi 304|
|ØA||C||D||Weight in gr.|
|H3122P04||CHROMED BRASS CHECK VALVE NBR 1/2" NEW||27,5||57||7,8||110|
|H3122P05||CHROMED BRASS CHECK VALVE NBR 3/4" NEW||34,5||64||10,8||190|
|H3122P06||CHROMED BRASS CHECK VALVE NBR 1" NEW||42||75||10,3||285|
|H3122P07||CHROMED BRASS CHECK VALVE NBR 1"1/4 NEW||51,5||82||12,4||405|
|H3122P08||CHROMED BRASS CHECK VALVE NBR 1"1/2 NEW||62,5||93||13||583|
|H3122P09||CHROMED BRASS CHECK VALVE NBR 2" NEW||77,5||100||15|
