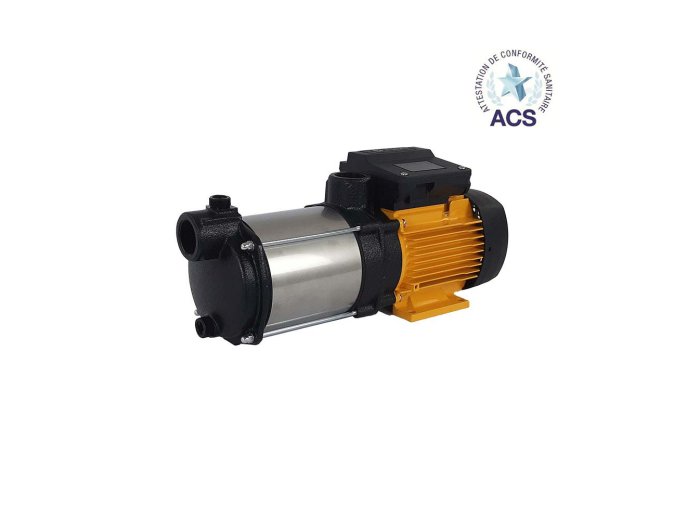

ASPRI 25

Horizontal multi-cell silent self-priming surface pump, 1 HP to 1.5 HP, pump body and impellers in stainless steel (AISI 304), cast iron suction and delivery with cataphoresis coating, Noryl diffusers filled with fibreglass, graphite/steatite mechanical seal. It can suck water up to a maximum height difference of 7 metres. Generally, the ASPRI 25 electric pump is used for water distribution, domestic pressurisation, residential pressurisation units, and for medium-flow irrigation.

Select variant

Key Features

Brand ESPA

Model ASPRI 25

Power supply type single-phase 230V , three-phase 400V 50Hz

Power P2 Hp 1Hp , 1,25Hp , 1,5Hp

Suction diameter threaded 1"

Outlet diameter threaded 1"

Not the right product?

Alternate Products Related products

BUY MODEL VARIANTS

In this section you will find all the variants of this model in the catalog: you can use the filters below to make your search more specific. When you have identified the variant you need, specify the quantity and use the button to add it to your Shopping List.

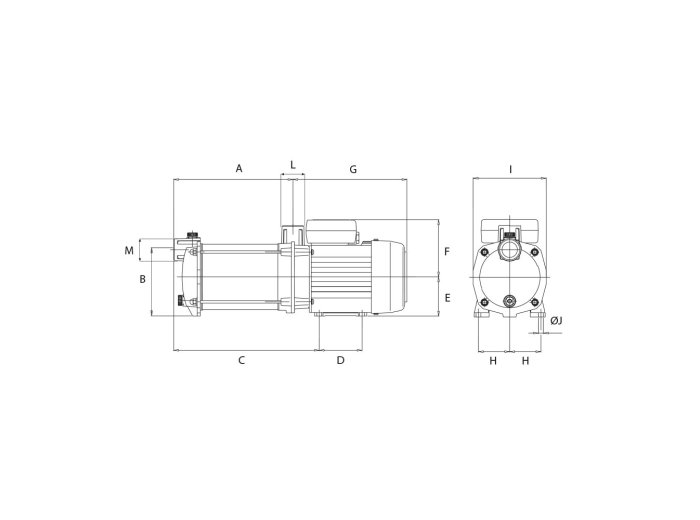

		A	B	C	D	E	F	G	H	I	J	L	M	Weight in Kg
96450	SURF. EL. PUMP ASPRI253M 1HP 1-230V AUT	202	127	252,5	82	75	109,5	218	59	138	8	1"	1"	13,5
96458	SURF. EL. PUMP ASPRI254M 1,25HP 1-230V A	228,5	127	279	82	75	109,5	218	59	138	8	1"	1"	14,6
96466	SURF. EL. PUMP ASPRI255M 1,5HP 1-230V AU	255	127	328	82	75	109,5	240,5	59	138	8	1"	1"	17,2
96455	SURF. EL. PUMP ASPRI254 1,25HP 3-400V AU	228,5	127	279	82	75	109,5	218	59	138	8	1"	1"	14,6
96464	SURF. EL. PUMP ASPRI255 1,5HP 3-400V AU	255	127	328	82	75	109,5	240,5	59	138	8	1"	1"	17,2

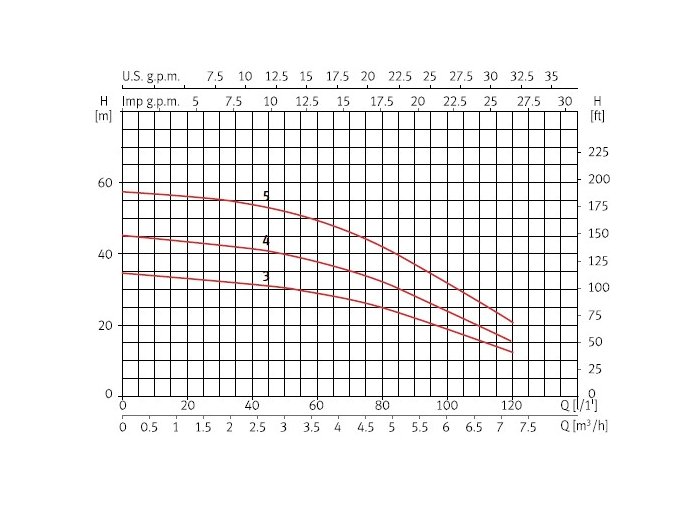

		Motor power P2	17	33	50	67	83	100	113	120
96450	SURF. EL. PUMP ASPRI253M 1HP 1-230V AUT	1 / 0,75	33	32	31	28,5	23,8	18	13,5	12
96458	SURF. EL. PUMP ASPRI254M 1,25HP 1-230V A	1,25 / 0,92	43,5	42,2	40,2	36	30,2	23,8	17,8	15
96466	SURF. EL. PUMP ASPRI255M 1,5HP 1-230V AU	1,5 / 1,1	55,8	54,2	51,8	46,2	40	31,7	24	20
96455	SURF. EL. PUMP ASPRI254 1,25HP 3-400V AU	1,25 / 0,92	43,5	42,2	40,2	36	30,2	23,8	17,8	15
96464	SURF. EL. PUMP ASPRI255 1,5HP 3-400V AU	1,5 / 1,1	55,8	54,2	51,8	46,2	40	31,7	24	20
