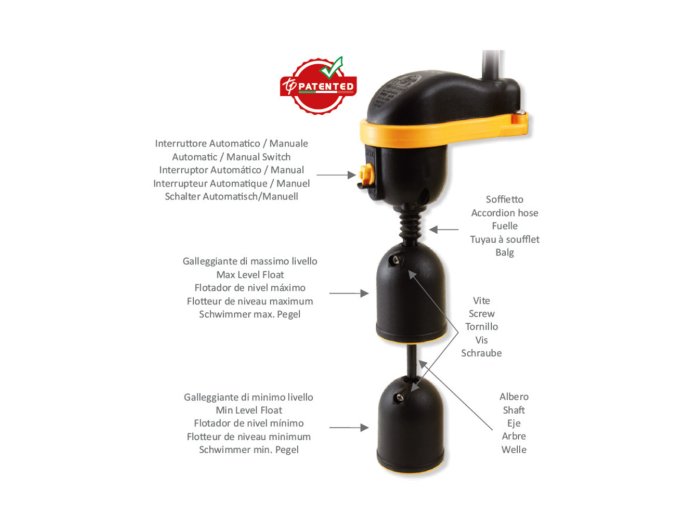

The MOUSE 10000 vertical float level switch allows the automation of pumps, as well as solenoid valves, alarm activation and motorised gate valves when a pre-set level of the liquid contained in tanks or cisterns is reached, and is capable of operating in confined spaces. It allows tripping levels to be adjusted by moving the float bodies along the shaft.
The MOUSE 10000 float switch is available with a 5 or 10 metre electric cable and is suitable for operation with clean water without suspended solids.
The MOUSE 10000 float switch is available with a 5 or 10 metre electric cable and is suitable for operation with clean water without suspended solids.
Key Features
Brand
TECNOPLASTIC
Cable
H07 RN-F 4G1 diam. 9,7 mm.
Casing
Polypropylene
Function
Emptying and refilling
Certification
TUV Rheinland - CE - EAC
Shaft
POLYESTER - 10m: min. 1m (3,28 ft) – max. 10m (32,81 ft)
BUY MODEL VARIANTS
In this section you will find all the variants of this model in the catalog: you can use the filters below to make your search more specific. When you have identified the variant you need, specify the quantity and use the button to add it to your Shopping List.
Loading...
50,00 °C
Clear Water
IP68
10,00 m
Vertical
Pressurization, Water treatment
Power supply: max. 10(8)A 250V for pumps up to 1.5 Hp
Class: I - II
Grommet: EPDM
Accordion: EPDM
Shaft: Polyester
Depth: max.10mt. - 32.8 ft.
Temperature: max.+50°C (+122°F)
Protection grade: IP 68
Certifications: TUV Reinhland - EAC - CE

* Note:
dimensions are expressed in millimeters (mm.), unless otherwise specified.
Head in m.w.c.
Attachment | Format | Size | |
---|---|---|---|
User's manual ENG | 1.34 MB | Download | |
Manuale istruzioni ITA | 1.34 MB | Download | |
TUV certification ENG | 481.83 KB | Download | |
Certificato TUV ITA | 481.83 KB | Download | |
EAC Certification ENG | 1.44 MB | Download | |
Certificazione EAC ITA | 1.44 MB | Download | |
UL Certification ENG | 402.45 KB | Download | |
Certificazione UL ITA | 402.45 KB | Download |
