IDRJA

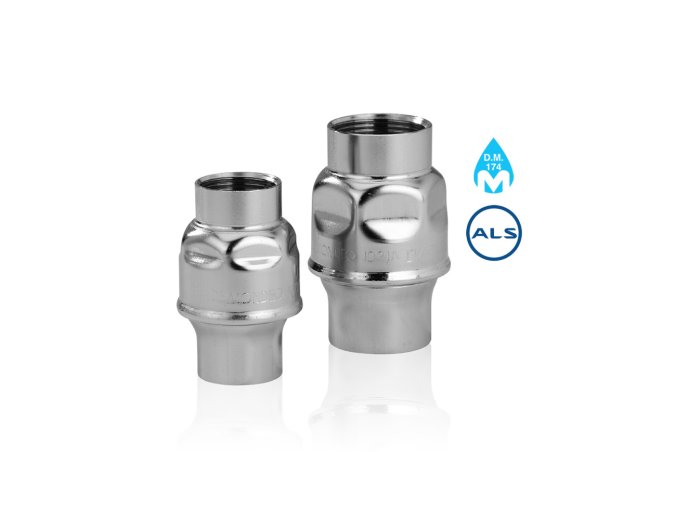

In-line non-return valve made of stainless steel (Aisi 304 or Aisi 316), spring loaded, with seal ring available in NBR, FPM, PTFE and FEP. Threaded female gas connections according to UNI ISO 228/1. Surface treatment: degreasing, pickling and electropolishing, except for valves with NBR seal. The IDRJA check valve is generally used in civil and industrial hydraulic systems in the outlet position where it is necessary to avoid fluid return and works at a nominal working pressure (PN) of 16 bar.
Key Features
Brand
MONDEO
Material
Aisi 304 - Aisi 316
Seal
NBR, FPM, PTFE, FEP
DN
20 - 100
PN
16
Approvals
NSF/ANSI/CAN 61 & 372 (only Aisi 316 FPM types)
BUY MODEL VARIANTS
In this section you will find all the variants of this model in the catalog: you can use the filters below to make your search more specific. When you have identified the variant you need, specify the quantity and use the button to add it to your Shopping List.
